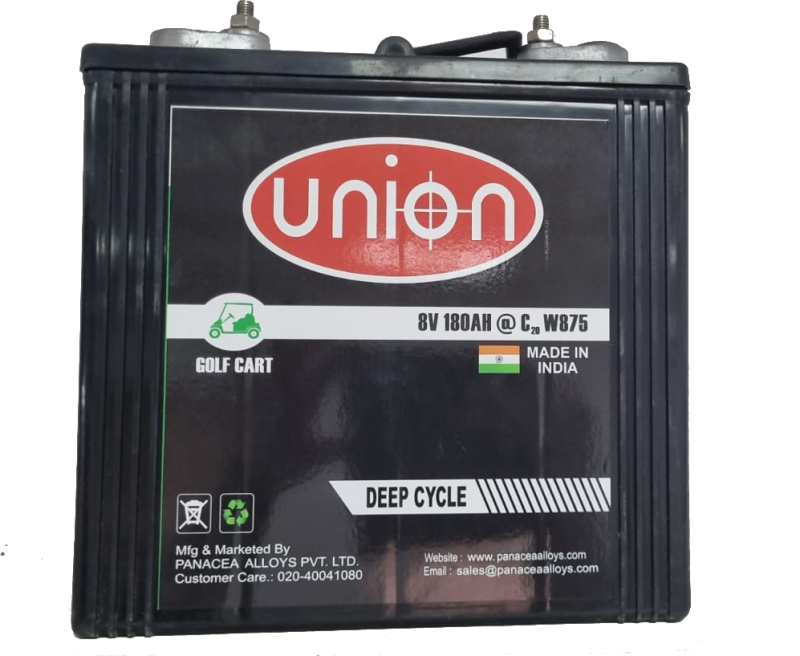

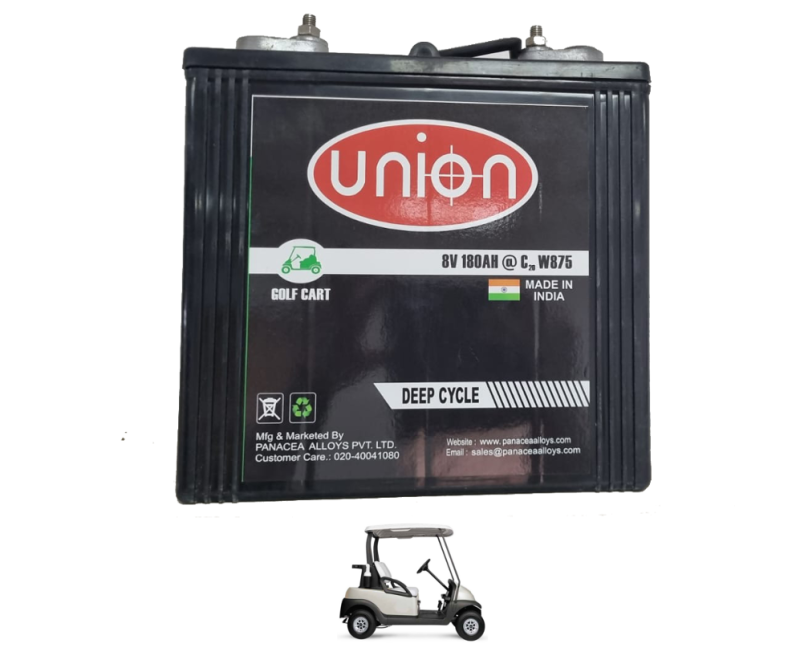

MODEL

JPW875

CAPACITY

8V 180 AH @ C-20

BATTERY

Deep cycle flooded Lead Acid Battery

Voltage

Cells

Dimensions ( ±5 mm )

Weight (Kg)

Length

Width

Height

8

8

260

180

275

29.8

Cover vent style

Vent plugs with Arrestor

Container & cover material

Black/Red Polypropylene plastic

Case to cover seal method

Heat sealing

Inner cell connector type

Through partial welding

Plate lug weld method

Automated cast on process

Positive Grid material

Antimony Lead Alloy

Negative Grid material

Antimony Lead Alloy

Separator type

Microporous Sleeve type PE

Capacity in Amp-Hours (Ah)

Operating Temperature

25A

75A

5 Hrs

10 Hrs

20 Hrs

Minimum Temperature

-20°C

295 min

75 min

145

161

180

Maximum Temperature

+45°C

System Voltage

12V

24V

36V

48V

72V

Bulk Charge

15.6

31.2

46.8

62.4

93.6

Float Charge

13.2

26.4

39.6

52.8

79.2

Equalize Charge

14.1

28.2

42.3

56.4

84.6

Phase I

Constant- Current  Constant Current charge at-18 – 21.6 Amps until the battery voltages measures between 9.55-9.75 V/ Battery

Phase II

Constant- Voltage  Constant Voltage charge at 9.55 – 9.75 V/ Battery (25°C) until the current measures between 2.25-6.75 Amps

Phase III

Constant- Current  Constant current charge at 1.8 – 5.4 Amps until the battery voltage measures between 10 – 10.8 V/Battery (25°C) OR until dV/dT reaches to less than 0.035

SELF DISCHARGE RATE

2-12% per month depending on storage temperature conditions.
