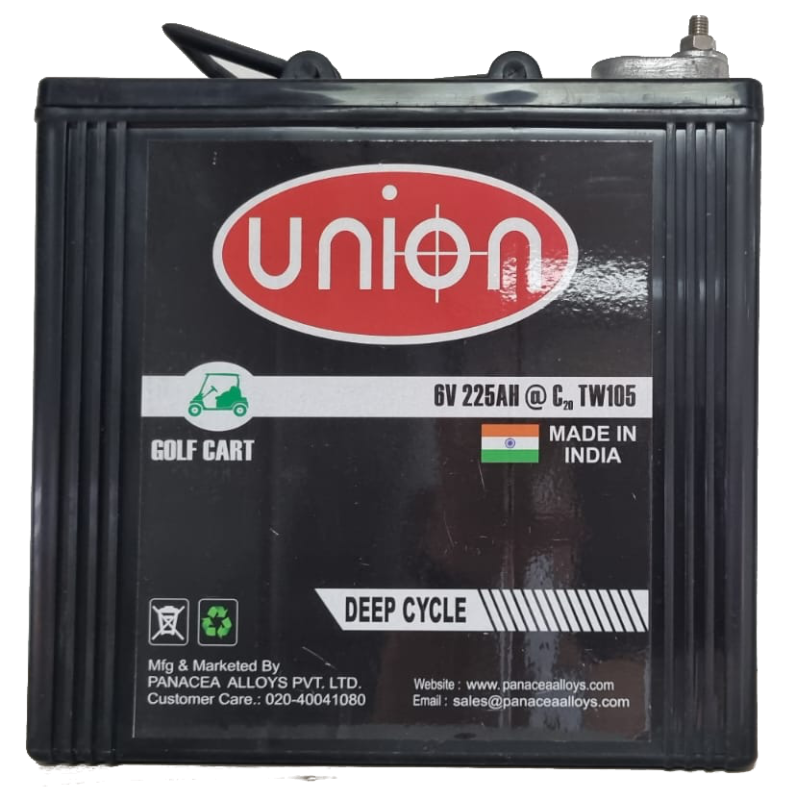

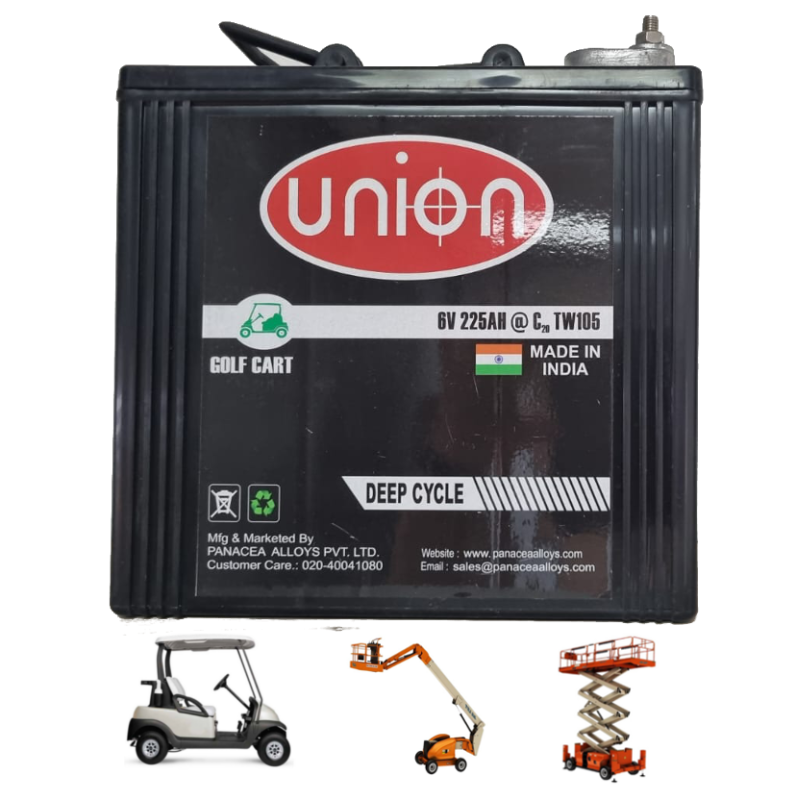

Union TW-105
|
Category: |
Semi Traction, Deep Cycle, Golf Cart, Material Handling, Lift System |
|
SKU: |
TW-105 |
|
Price: |
R 3864.00 |
|
Voltage: |
6V |
|
Capacity: |
225AH |
|
Length: |
260mm |
|
Width: |
180mm |
|
Height: |
275mm |
|
Weight: |
29.9 Kg |
|
C-Rating: |
6V 225AH @ C-5 |
|
Warranty Period: |
1 Year |
|
{{variant.name}}:
|
{{opt.name}}
{{opt.name}}
|
TECHNICAL DATA SHEET
|
MODEL |
TW105 |
|
CAPACITY |
6V 225 AH @ C-20 |
|
BATTERY |
Deep cycle flooded Lead Acid Battery |
PRODUCT & PHYSICAL SPECIFICATIONS
|
Voltage |
Cells |
Dimensions ( ±5 mm ) |
Weight (Kg) |
||
|
|
|
Length |
Width |
Height |
|
|
6 |
3 |
260 |
180 |
275 |
30.1 |
MATERIAL SPECIFICATION
|
Cover vent style |
Vent plugs with Arrestor |
|
Container & cover material |
Black/Red Polypropylene plastic |
|
Case to cover seal method |
Heat sealing |
|
Inner cell connector type |
Through partial welding |
|
Plate lug weld method |
Automated cast on process |
|
Positive Grid material |
Antimony Lead Alloy |
|
Negative Grid material |
Antimony Lead Alloy |
|
Separator type |
Microporous Sleeve type PE |
ELECTRICAL SPECIFICATIONS
|
Capacity in Amp-Hours (Ah) |
|
Operating Temperature |
||||
|
25A |
75A |
5 Hrs |
10 Hrs |
20 Hrs |
Minimum Temperature |
-20°C |
|
450 min |
117 min |
175 |
200 |
225 |
Maximum Temperature |
+45°C |
CHARGING INSTRUCTIONS
|
System Voltage |
12V |
24V |
36V |
48V |
72V |
|
Bulk Charge |
15.6 |
31.2 |
46.8 |
62.4 |
93.6 |
|
Float Charge |
13.2 |
26.4 |
39.6 |
52.8 |
79.2 |
|
Equalize Charge |
14.1 |
28.2 |
42.3 |
56.4 |
84.6 |
RECOMMENDED CHARGE PROFILE
Phase I
Constant- Current Constant Current charge at -23 – 27.6 Amps until the battery voltages measures between 7.16 – 7.31 V/ Battery
Phase II
Constant- Voltage Constant Voltage charge at 7.16 – 7.31 V/ Battery (25°C) until the current measures between 2.28 – 6.79 Amps
Phase III
Constant- Current Constant current charge at 2.28 – 6.79 Amps until the battery voltage measures between 7.6 – 8.3 V/Battery (25°C) OR until dV/dT reaches to less than 0.035
2-12% per month depending on storage temperature conditions.
SELF DISCHARGE RATE
* Do not charge the batteries in sealed or non-ventilated compartment.
* Do not overcharge the batteries, it will damage the battery and shorten its life.
