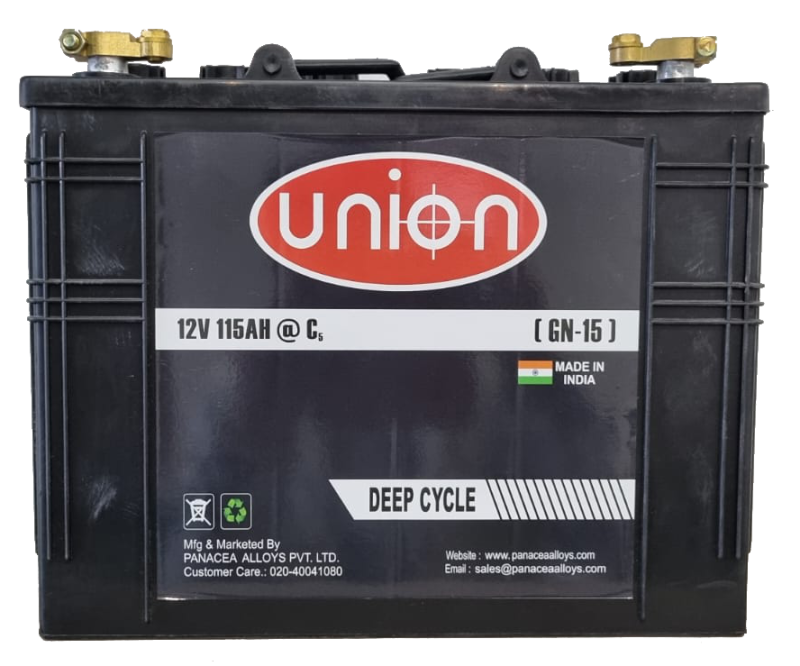

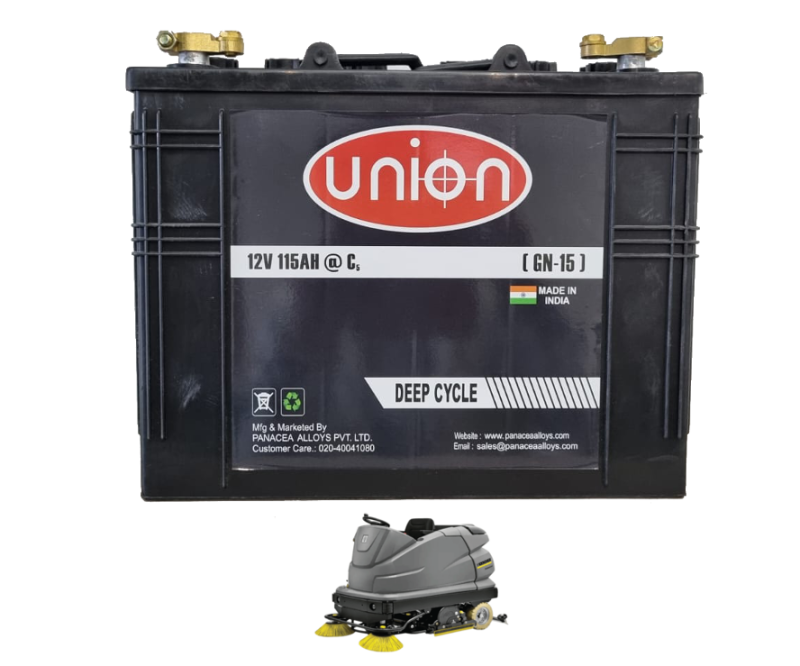

Union GN-15
|
Category: |

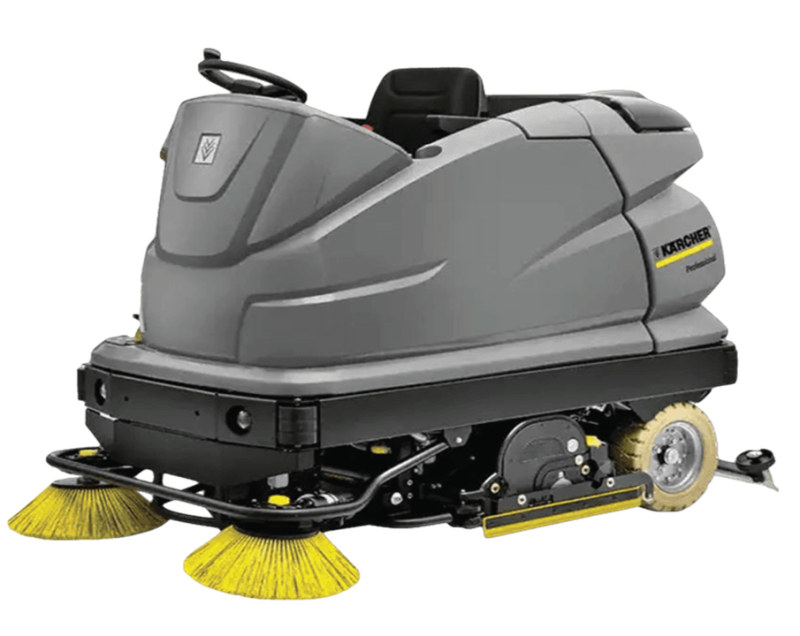

Semi Traction, Industrial Cleaning Equipment |
|
SKU: |
GN-15 |
|
Price: |
R 5796.00 |
|
Voltage: |
12V |
|
Capacity: |
115AH |
|
Length: |
345mm |
|
Width: |
173mm |
|
Height: |
295mm |
|
Weight: |
37.9 Kg |
|
C-Rating: |
12V 115AH @ C-5 |
|
Warranty Period: |
1 Year |
|
{{variant.name}}:
|
{{opt.name}}
{{opt.name}}
|
TECHNICAL DATA SHEET
|
MODEL |
GN15 |
|
|
|
VOLTAGE |
12 Volts |
MATERIAL |
Polypropylene |
|
CAPACITY |
115 Ah |
COLOUR |
Black |
|
BATTERY |
Semi-Traction – Lead Acid Battery |
||
PRODUCT & PHYSICAL SPECIFICATIONS
|
Voltage |
Cells |
Dimensions ( ±5 mm ) |
Weight (Kg) |
||
|
|
|
Length |
Width |
Height |
|
|
12 |
6 |
345 |
173 |
295 |
37.9 |
MATERIAL SPECIFICATION
|
Cover vent style |
Vent plugs with Arrestor |
|
Container & cover material |
Black/Red Polypropylene plastic |
|
Case to cover seal method |
|
|
Inner cell connector type |
Through partial welding |
|
Plate lug weld method |
Automated cast on process |
|
Positive Grid material |
Antimony Lead Alloy |
|
Negative Grid material |
Antimony Lead Alloy |
|
Separator type |
Microporous Sleeve type PE |
ELECTRICAL SPECIFICATIONS
|
Capacity in Amp-Hours (Ah) |
Operating Temperature |
|||
|
5 Hrs |
10 Hrs |
20 Hrs |
Minimum Temperature |
-20°C |
|
115 |
130 |
150 |
Maximum Temperature |
+45°C |
CHARGING INSTRUCTIONS
|
System Voltage |
12V |
24V |
36V |
48V |
72V |
|
Bulk Charge |
15.6 |
31.2 |
46.8 |
62.4 |
93.6 |
|
Float Charge |
13.2 |
26.4 |
39.6 |
52.8 |
79.2 |
|
Equalize Charge |
14.1 |
28.2 |
42.3 |
56.4 |
84.6 |
|
SELF DISCHARGE RATE |
2-12% per month depending on storage temperature conditions. |
