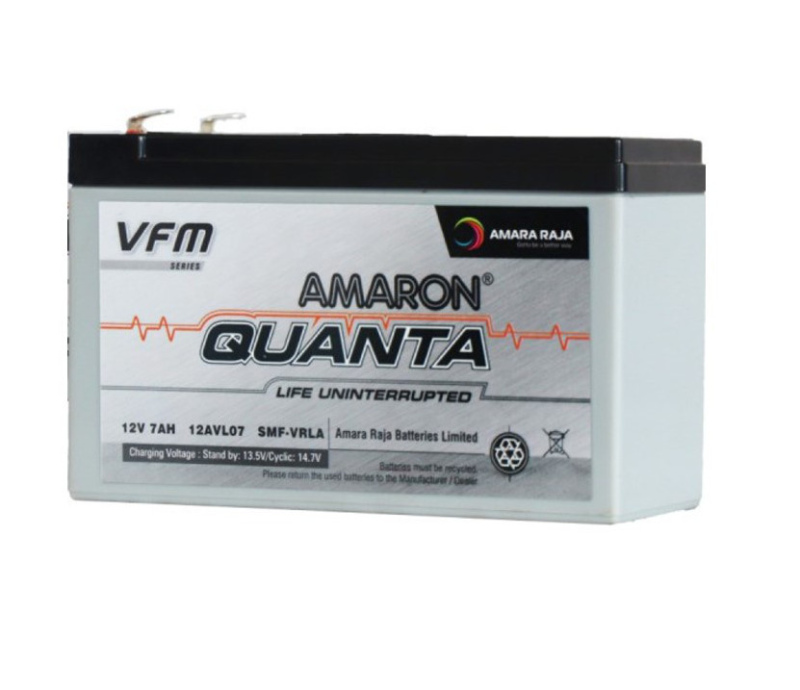

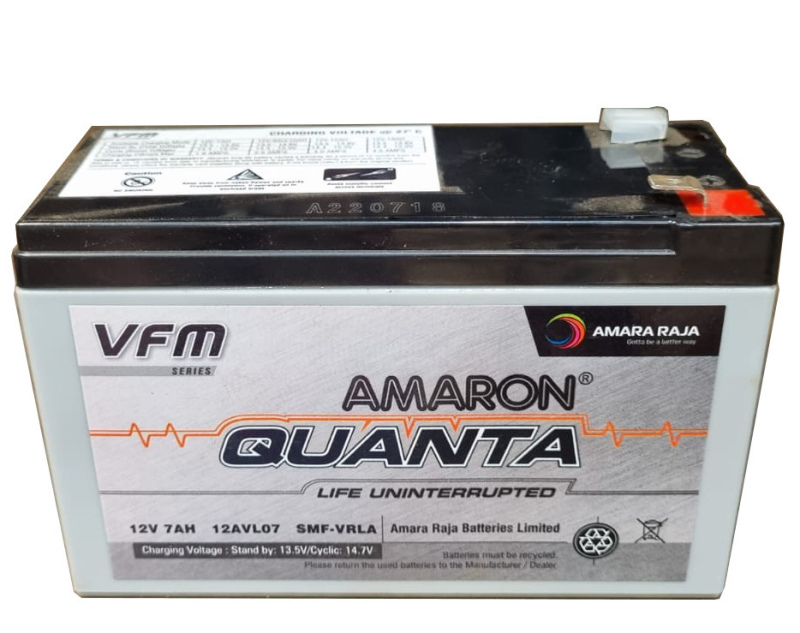

MODEL

Amaron Qanta 12AVL007

VOLTAGE

12 Volts

RATED CAPACITY

7 Ah / C20 1.75VPC / 27°C

BATTERY

sealed maintenance-free powerhouse

valve regulated lead acid

Voltage

Terminal Type

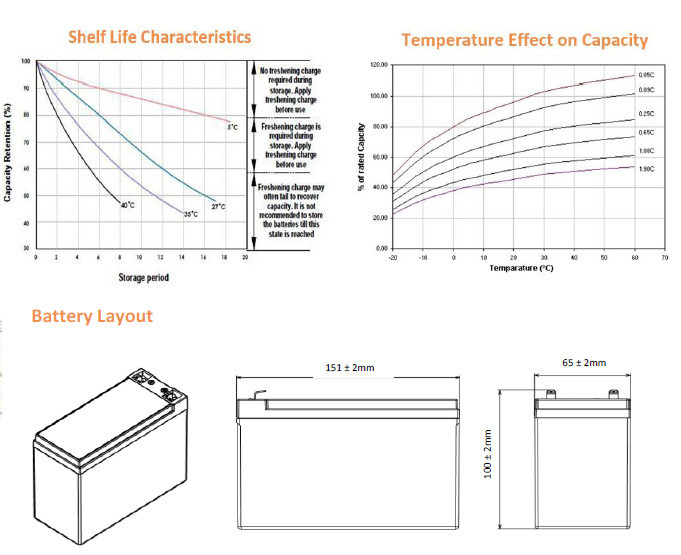

Dimensions ( mm )

Weight (Kg)

Length

Width

Height

12

F2 (Faston tab)

151

65

100

2,2

6.4 Ah

10hr

0.64A

10,5V/battery

5.9 Ah

5hr

1,18A

10,2/battery

4.56 Ah

1hr

4,65A

9,6V/battery

Case Material

Acrylonitrile Butadiene Styrene (ABS)

Internal Resistance (IR)

Approx. 19.0 mΩ for a fully charged battery (27°C)

Max. discharge current

(5 sec) 105 A

Operating Temp. range

-20°C to +50°C

Nominal Operating Temp. range

27°C ± 3°C

Standby use (27°C)

Cyclic use (27°C)

Charging Voltage

13.5 to 13.8V/battery

14.4 to 15.0V/battery

Charging Current Max

. 25% of rated capacity

. 25% of rated capacity

Temp. Compensation

± 18mV/battery/°C

± 30mV/battery/°C

Features
ü Proven AGM technology that ensures
maintenance free characteristics
ü Low self-discharge rates for extended
storage periods
ü Design float life of up to 6 years
ü Clean and Sleek looks

Applications
ü Data Centers
ü Banks & Financial Markets
ü Network Operations Centers
ü Internet Housing Sites
ü Semiconductor Manufacturing
ü Hospital & Testing laboratories

Compliance
ü Complies to JIS C 8702
ü Complies to IEC 61056
ü Complies to IEC 60896

Quality Standards
Manufactured in best-in-class facility certified to
ü ISO 9001: 2015
ü ISO 14001: 2015
ü OHSAS 18001: 2007
